5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
Naziv proizvoda: tijelo ulične rasvjete
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
Indeks vodootpornosti: IP66 IP67
Indeks otpornosti na potres: IK08 IK09
Radna temperatura (℃): -20-60
Boja površine: tamno siva, svijetlo siva, crna, prilagođena itd
Contain Accessories : Complete finished street lights
Značajke proizvoda
- Aluminijsko kućište izrađeno je od ADC12 aluminijskog tlačnog lijevanja, površina tretirana sprejom za sprječavanje korozije i postojanost boje.
- Dizajn pera hladnjaka velike površine za brzu teoriju u korist konvekcije između hladnog i vrućeg zraka, za održavanje dobre disipacije topline lampi i povećanje svjetla tijekom cijelog životnog vijeka.
- Kutija za napajanje kako bi svjetiljka bila potpuna i jedinstvena.
- Dizajn ventilacije za sprječavanje prašine i stajaće vode kako bi se postigla dugotrajnost svjetlosti.

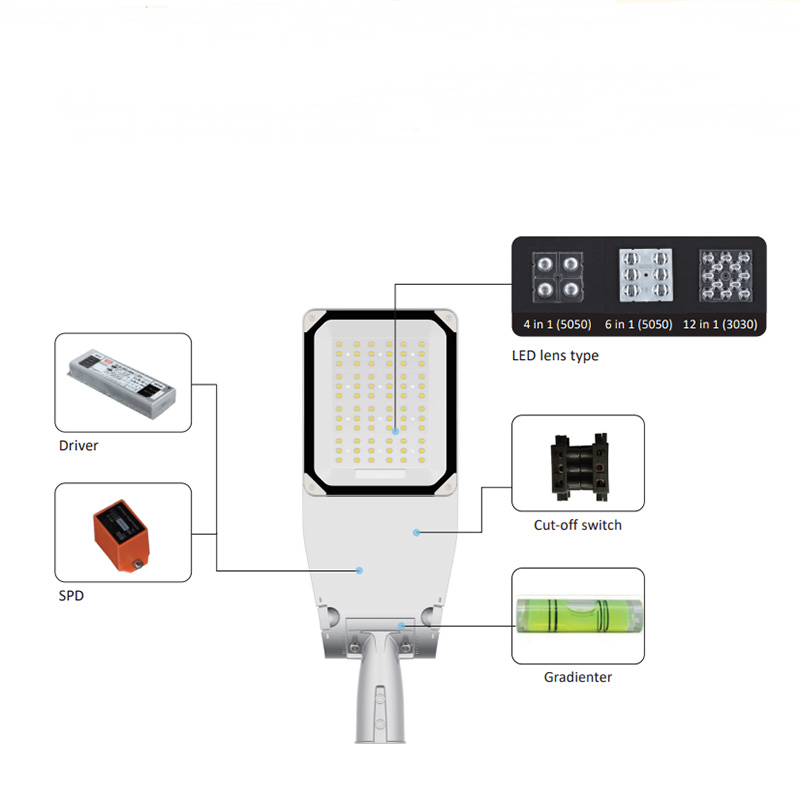

Product Details

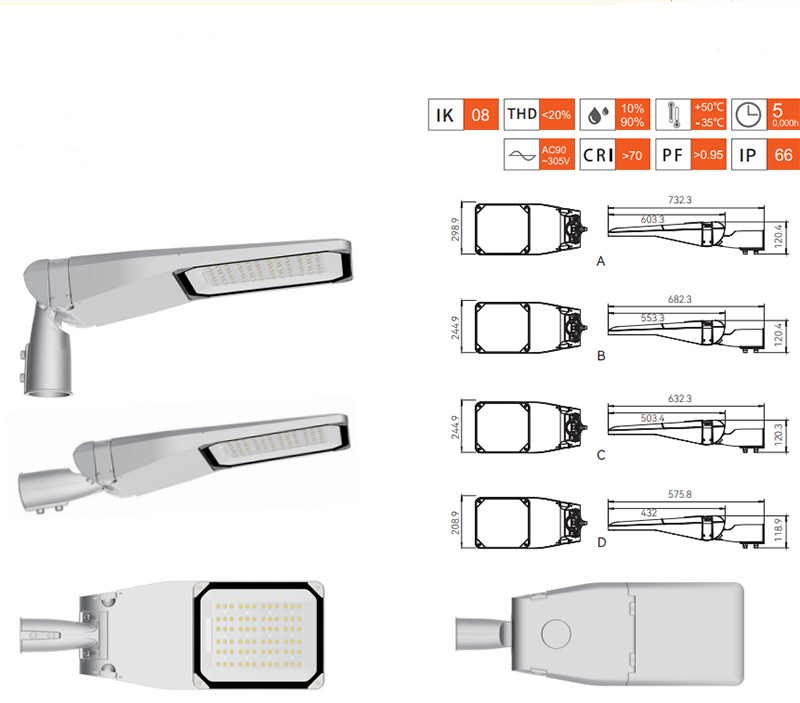

Product Size Chart
Specifikacija i dimenzija
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| Wattage | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| Average Lumen | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| Chip Brand | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN |
| Driver Brand | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Voltage Range | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| Insulation Class | Class I / II | Class I / II | Class I / II | Class I / II |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) |
| IP klasa | IP66 | IP66 | IP66 | IP66 |
| IK Class | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| Materijal | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium |
| Photocell base | With | With | With | With |
| Installation Spigot | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
ShenZhen EKI Lighting Industrial Co., Ltd. je proizvođač aluminijskih kućišta LED svjetiljki od lijevanja pod tlakom s različitim vlastitim razvijenim dizajnom i tehnologijama.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
