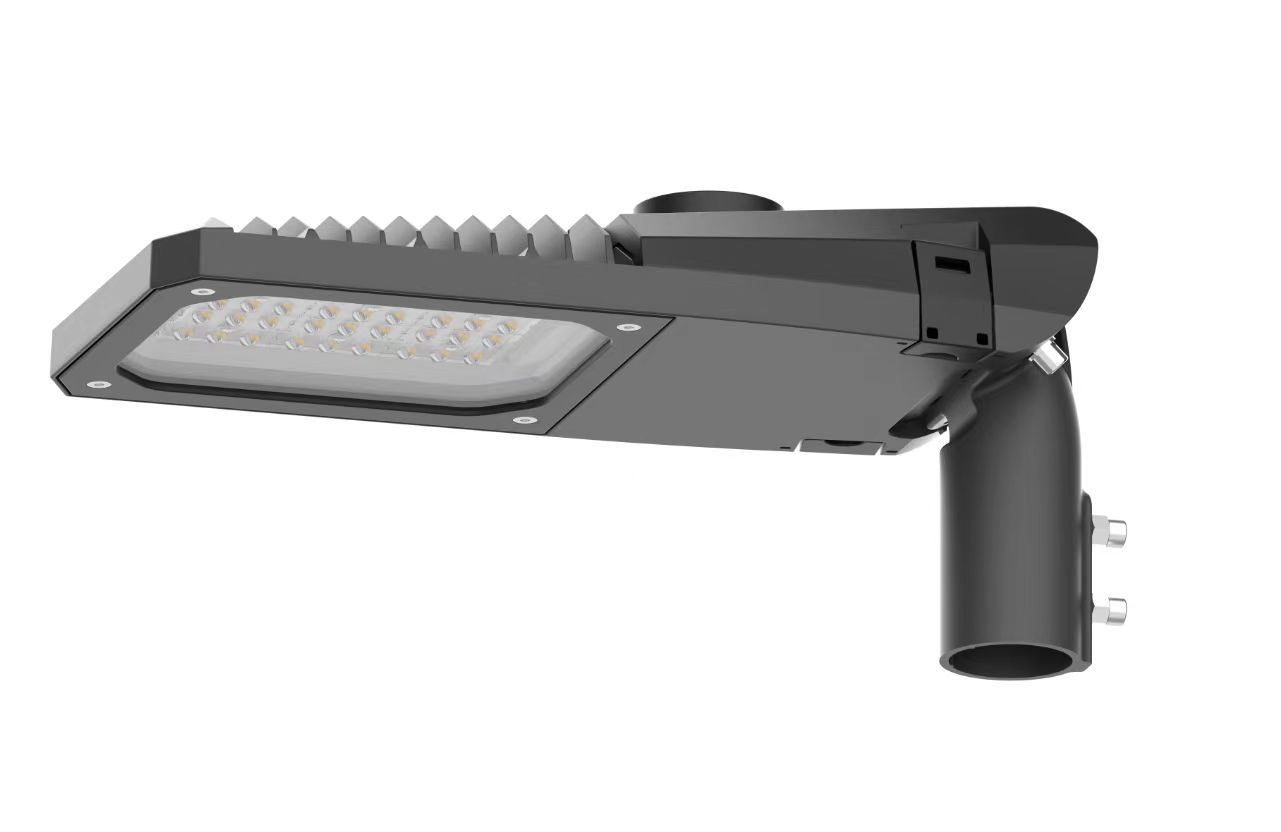

Horizontal and Vertical available adjustable angle-15°to+15° led street lighting.

The LED Street light housing manufacture from high pressure die-casting aluminum casing

Kod modelaHousing Size mmSnaga utakmiceLamp Post (mm)  Težina (kg)Pribor
EK-LD13A492*183*9730-50W602.4kgAluminum body tempered glass, Waterproof Rubber Ring,304 s/s screws,
EK-LD13B541*200*11360-80W602.8kg
EK-LD13C602*243*12190-120W603.5kg
EK-LD13D652*263*121120-150W604.0kg
EK-LD13E722*314*121150-200W605.5kg
EK-LD13F823*314*121240-300W606.1kg
Legend: Std = IP66 IK08
Housing Material :Die-cast Aluminum + Armored Glass
Radna temperatura -35℃~50℃ 20%~90% HR

Značajke proizvoda

  1. Aluminijsko tijelo izrađeno je od ADC12 aluminijskog tlačnog lijevanja, površina tretirana sprejom za sprječavanje korozije i postojanost boje.
  2. Large area heatsinks fin design for fast theory in favor of the connection between cold and hot air, to keeping the good heat dissipation of lamps and increase the light whole life-time.
  3. Kutija za napajanje kako bi svjetiljka bila potpuna i jedinstvena.
  4. Dizajn ventilacije za sprječavanje prašine i stajaće vode kako bi se postigla dugotrajnost svjetlosti.

high-performance street lighting available in three sizes.

The LED Street lighting is manufactured from high pressure die-casting aluminum.

Led street light housing, Aluminum body street light

ShenZhen EKI Lighting Industrial Co., Ltd. je proizvođač aluminijskih kućišta LED svjetiljki od lijevanja pod tlakom s različitim vlastitim razvijenim dizajnom i tehnologijama.

With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED High bay Heatsink, LED Downlight Empty Casting and so on.

Značajke kućišta LED ulične rasvjete:

  • Visoka postojanost
  • Velika snaga
  • Dostupni najnoviji dizajni
